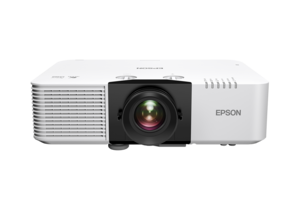

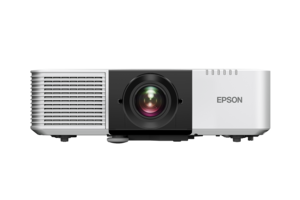

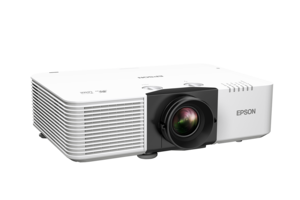

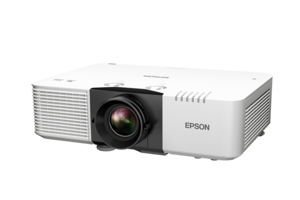

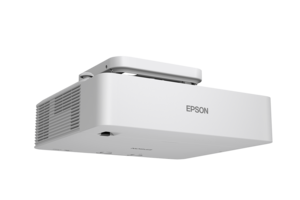

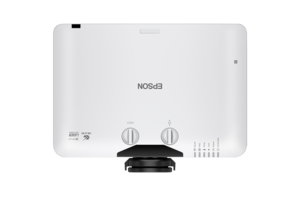

Epson EB-L890U WUXGA 3LCD Laser Projector

เตรียมพร้อมสู่ความมหัศจรรย์

The Epson EB-L890U adds incredible brightness and pro features to the compact and versatile Epson business projector family. Featuring an impressive 8,000-lumens of color and white brightness¹, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

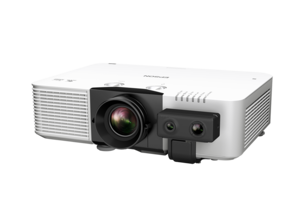

Designed with convenience in mind, the EB-L890U features an up to 30,000-hour virtually maintenance-free laser light source ² and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

8,000 lumens color/white brightness ¹
WUXGA resolution for clear, detailed images
Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
Lightweight, compact design allows for easy installation
Up to 30,000-hour laser light source² and air filter
AirPlay 2 supported

ค้นหาโปรแกรมเสริม

ภาพรวม

Ultra bright, true-to-life images

3-chip 3LCD technology and 8,000 lumens of equal color and white brightness ¹

WUXGA resolution

Provides 1920 x 1200 resolution for vibrant, high-definition images

Large, versatile display options

Easily create a display up to 500"" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

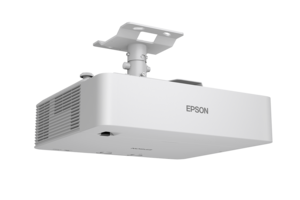

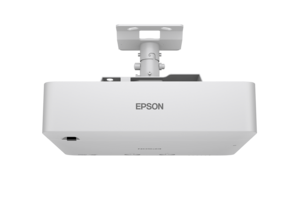

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source and air filter ² in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

ข้อมูลจำเพาะ

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts:

LCD: Size: 0.67” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: WUXGA
Aspect Ratio: 16:10
Pixel Arrangement: Cross stripeLight Source: Type: Laser Diode
Life (Normal / Extended): 20,000 hours / 30,000 hoursProjection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.5 - 1.7
Focal Length: 20.0mm - 31.8mm
Zoom Ratio: 1.0 - 1.6
Throw Ratio: 1.35 - 2.20
Lens Shift:
Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)

Screen Size (Projected Distance):

Screen Size: Standard Size:
80" diagonal 2.33m - 3.78m
Zoom: Wide: 50" - 500" [1.44m - 14.76m]
Zoom: Tele: 50" - 500" [2.35m - 23.84m]

**Brightness^*1:**

White Light Output (Normal/Eco): 8,000 lm / 5,600 lmColour Light Output: 8,000 lmLight Output (Center)^*3: 8,700 lm

Contrast Ratio:

Contrast Ratio: Over 5,000,000:1

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°Projection Orientation: 360º Free

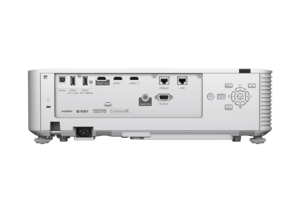

Connectivity:

USB: USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback,ELPEC01 or 5V/0.9A Power Supply
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network: Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Built-inDigital Input: HDMI : 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3) Audio Output: Stereo Mini: 1Control I/O: RS-232C: 1 (D-Sub 9pin)Digital Output: HDMI Out : 1 (HDCP2.3, supports only HDMI1 input)

Power:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 HzPower Consumption (220-240V area): LD On (Normal / Extended): 450W / 330W
Standby (On/Off) : 2.4 W / 0.4 W

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period: 12 seconds (Epson Logo); Warm-up Period: 30 secondsQuick Start-Up: Less than 8 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Air Filter:

Type: Electrostatic FilterMaintenance Cycle^*2: 20,000 hours (Normal) / 30,000 hours (Extended)

Weight:

Weight: Approx. 8.5kg

Fan Noise:

Fan Noise (Normal / Eco): 36dB / 26dB

Operating Temperature:

Single Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
20% - 80% Humidity, No CondensationMulti-projection Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
20% - 80% Humidity, No Condensation

Internal Speaker(s):

Sound Output: 10 W Monaural

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H): 440 x 304 x 122 mm

Miracast:

Certification: Wi-Fi CERTIFIED Miracast R2Supported Codex: H.264 (AVC)

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Mode : Infrastructure, Simple AP (Wi-Fi Direct)Supported Speed : IEEE 802.11a/b/g/n/ac/axSecurity Tyре: Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, EAP-TLS
Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

AirPlay 2:

Supported Codec: H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4

Specifications Projector:

Size - projected distance: 100” diagonal (wide: 9.3’ – tele: 19.8’) Contrast Ratio: Absolute Black (Full White 1500 lm / Full Black 0 lm) Projection Method: Front / rear / ceiling mount Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix Pixel Number: 2,073,600 dots (1920 × 1080) × 3Color Brightness - Color Light Output: 1500 lumens *1Projected Output: HD, 2D, 3D, 1080pWhite Brightness - White Light Output: 1500 lumens *1Aspect Ratio: Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom Modes Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS Native Resolution: Native 1080p (1920 × 1080) Laser Type: Laser Diode 41.9 mW (Output) Light Source Life: Up to 20,000 hours (ECO Mode)*2

Colour Mode:

Colour Mode: Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

ดูข้อมูลจำเพาะทั้งหมด ซ่อนรายละเอียดทั้งหมด

Print All Specs

อุปกรณ์เสริม

Accessories

หมายเหตุ:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118

² No required maintenance for the light source and filter for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period

³ This light output value is measured at the centre of the screen as a reference value.There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
