Epson EB-L790SE Short Throw 3LCD Laser Projector with 4K Enhancement²

The exceptionally bright short throw laser display with a 0.79 – 1.36 throw ratio and 4K Enhancement².

Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the high-lumen EB-L790SE features an expansive 0.79 – 1.36 throw ratio and a large display up to 400". With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver ultra bright images in rooms with high-ambient light with 7,000 lumens of equal color and white brightness¹ and 4K Enhancement Technology² that displays double HD resolution on screen.

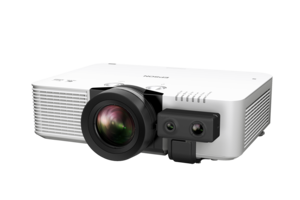

Simple to install, the EB-L790SE is easy to operate from start to finish. Built-in NFC functionality³, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source⁴ and air filter in Extended Mode. Plus, it’s built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

7,000 lumens color/white brightness¹
WUXGA with 4K Enhancement² for clear, detailed images
0.79 to 1.36 throw ratio and 1.7x optical zoom
Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
Lightweight, compact design allows for easy installation
AirPlay 2 supported

ภาพรวม

Ultra bright, true-to-life images
3-chip 3LCD technology and 7,000 lumens of equal color and white brightness¹

WUXGA with 4K Enhancement Technology²
Accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances

Large, versatile display options
Easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation
Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance
Up to 30,000-hour laser light source⁴ and air filter in Extended Mode

Wireless networking and content sharing
Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

ข้อมูลจำเพาะ

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts:

LCD: Size: 0.67” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: WUXGA
Aspect Ratio: 16:10
Pixel Arrangement: Cross stripeLight Source: Type: Laser Diode
Life (Normal / Extended): 20,000 hours / 30,000 hoursProjection Lens: Type: Optical Zoom (Manual) / Focus (Manual) / Distortion (Manual)
F-Number: 1.7 – 2.1
Focal Length: 11.6 – 19.9mm
Zoom Ratio: 1.00 - 1.7
Throw Ratio: 0.79 – 1.36
Lens Shift:
Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)

Screen Size (Projected Distance):

Standard Size: 100" diagonal 1.08m - 1.54mScreen Size: Zoom: Wide: 60” – 400” [1.02 to 6.95m]
Zoom: Tele: 60” to 400” [1.75 - 11.89m]

**Brightness^*1:**

White Light Output (Normal/Eco): 7000lm / 4900lmColour Light Output: 7000 lmLight Output (Center)^*5: 7600lm

Contrast Ratio:

Contrast Ratio: Over 5,000,000:1

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°Projection Orientation: 360º Free

Connectivity:

USB: USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, or 5V / 2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, or 5V / 0.9A Power Supply
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network: Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Built-inDigital Input: HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3) Audio Output: Stereo Mini: 1Control I/O: RS-232C: 1 (D-Sub 9pin)Digital Output: HDMI Out: 1 (HDCP2.3, Supports only HDMI 1 input)

Power:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 HzPower Consumption (220-240V area): LD On (Normal / Extended): 450W / 330W
Standby (Normal / Eco): 2.4 W / 0.4 W

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period: 12 seconds (Epson Logo); Warm-up Period: 30 secondsQuick Start-Up: Less than 8 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Air Filter:

Type: Electrostatic FilterMaintenance Cycle^*3: 20,000 hours (Normal) / 30,000 hours (Extended)

Weight:

Weight: Approx. 9.3kg

Fan Noise:

Fan Noise (Normal / Eco): 36dB / 26dB

Operating Temperature:

Single Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
20% - 80% Humidity, No CondensationMulti-projection Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
20% - 80% Humidity, No Condensation

Internal Speaker(s):

Sound Output: 10 W Monaural

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H): 440 x 304 x 122 mm

Miracast:

Certification: Wi-Fi CERTIFIED Miracast R2Supported Codec: H.264(AVC)

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Mode : Infrastructure, Simple AP (Wi-Fi Direct)Supported Speed : IEEE 802.11a/b/g/n/ac/axSecurity Tyре: Infrastructure:
OPEN
WPA2/WPA3-PSK
WPA2/WPA3-EAP
Supported EAP type:
PEAP, EAP-TLS
Simple AP(Wi-Fi Direct):
WPA2-PSK(AES)

AirPlay 2:

Supported Codec: H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4

Specifications Projector:

Size - projected distance: 100” diagonal (wide: 9.3’ – tele: 19.8’) Contrast Ratio: Absolute Black (Full White 1500 lm / Full Black 0 lm) Projection Method: Front / rear / ceiling mount Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix Pixel Number: 2,073,600 dots (1920 × 1080) × 3Color Brightness - Color Light Output: 1500 lumens *1Projected Output: HD, 2D, 3D, 1080pWhite Brightness - White Light Output: 1500 lumens *1Aspect Ratio: Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom Modes Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS Native Resolution: Native 1080p (1920 × 1080) Laser Type: Laser Diode 41.9 mW (Output) Light Source Life: Up to 20,000 hours (ECO Mode)*2

Colour Mode:

Colour Mode: Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

ดูข้อมูลจำเพาะทั้งหมด ซ่อนรายละเอียดทั้งหมด

Print All Specs

หมายเหตุ:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.

³NFC requires use of a device that includes NFC and may require additional software.

⁴ No required maintenance for the light source and filter for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period

⁵ This light output value is measured at the centre of the screen as a reference value.There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
